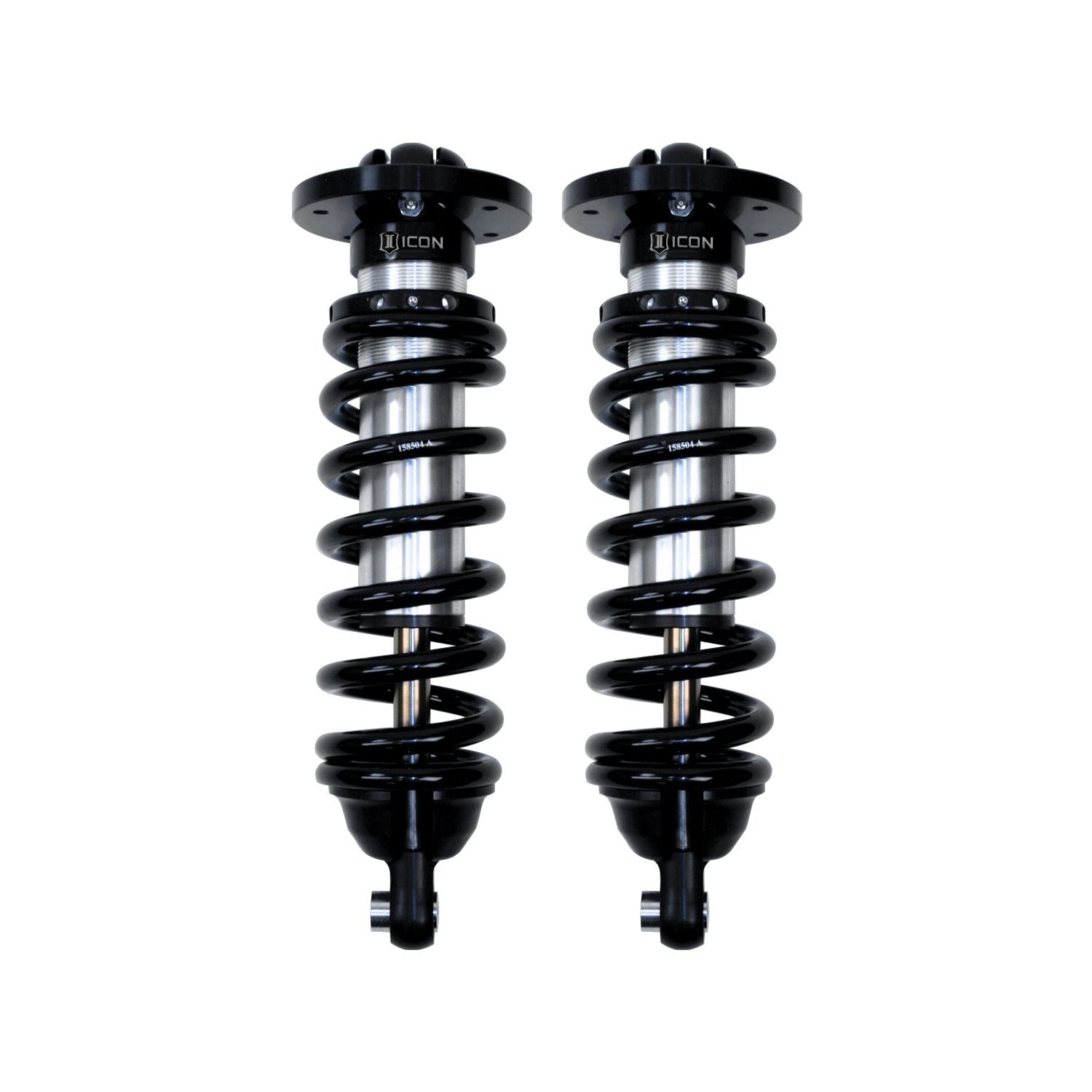

04-15 TITAN EXT TRAVEL 2.5 VS IR COILOVER KIT

These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires. These extended versions give you addtional 1" of down travel and are to be used with an aftermarket uniball upper control arm.

• Adjustable ride height from 0" - 3"
• Race shock piston with flutter stack compression valving
• Cad-plated threaded body / Optional Extreme Weather Plating
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable and re-valvable shock
• 2.5" shock diameter to prevent overheating
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir

Attributes:

• GTIN: 00840103406671
• Brand Name: ICON Vehicle Dynamics
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: NO
• 2917: yes
• 52: 2.5
• 50: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• 51: yes
• Grade Type: Performance
• 48: Eyelet
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• 409: Top of Upper Mount Plate
• 408: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• 49: Mounting Plate

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: x x inches
• Weight: 0 lb
