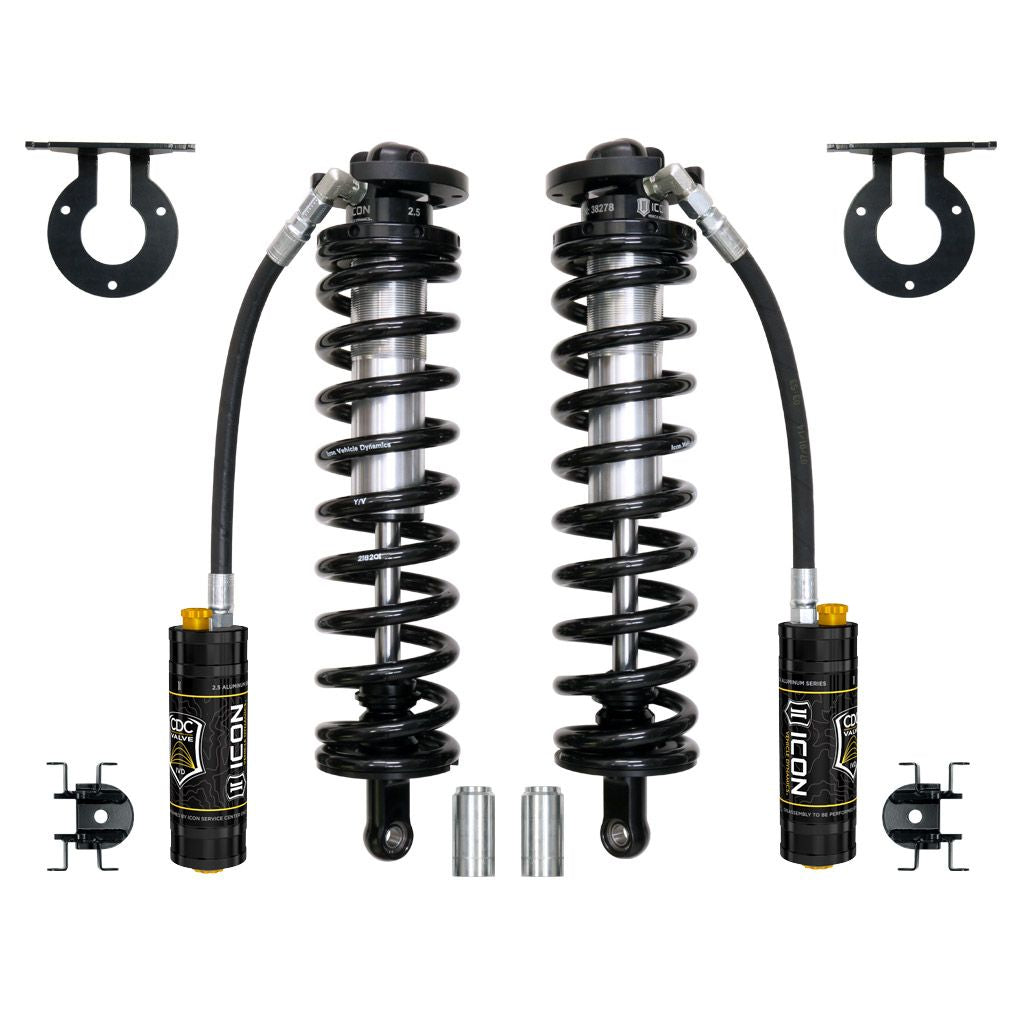

05-UP FSD 4" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-UP F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or revalved as necessary. ICON’s CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob.

• Coilover conversion allows for addition of secondary shock
• Shocks are fully rebuildable and revalveable
• Vehicle-specific shock valving provides unparalleled ride quality and control
• CDCV technology allows for quick and easy compression damping adjustment
• Decreased body roll and improved on and off-road ride dynamics
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers (4-5.5")
• Eibach coil springs guaranteed for life against sagging or breakage
• Bolt-in system fits in OE coil bucket location
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft

Attributes:

• GTIN: 00840103405445
• Brand Name: ICON Vehicle Dynamics
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: Yes
• 2917: Yes
• 52: 2.5
• 50: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• 51: Yes
• Grade Type: Performance
• 48: Eyelet
• Material: Aluminum
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
• Remote Reservoir: Yes
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• 409: Top of Upper Mount Plate
• 408: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• 49: Mounting Plate

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: x x inches
• Weight: 0 lb
