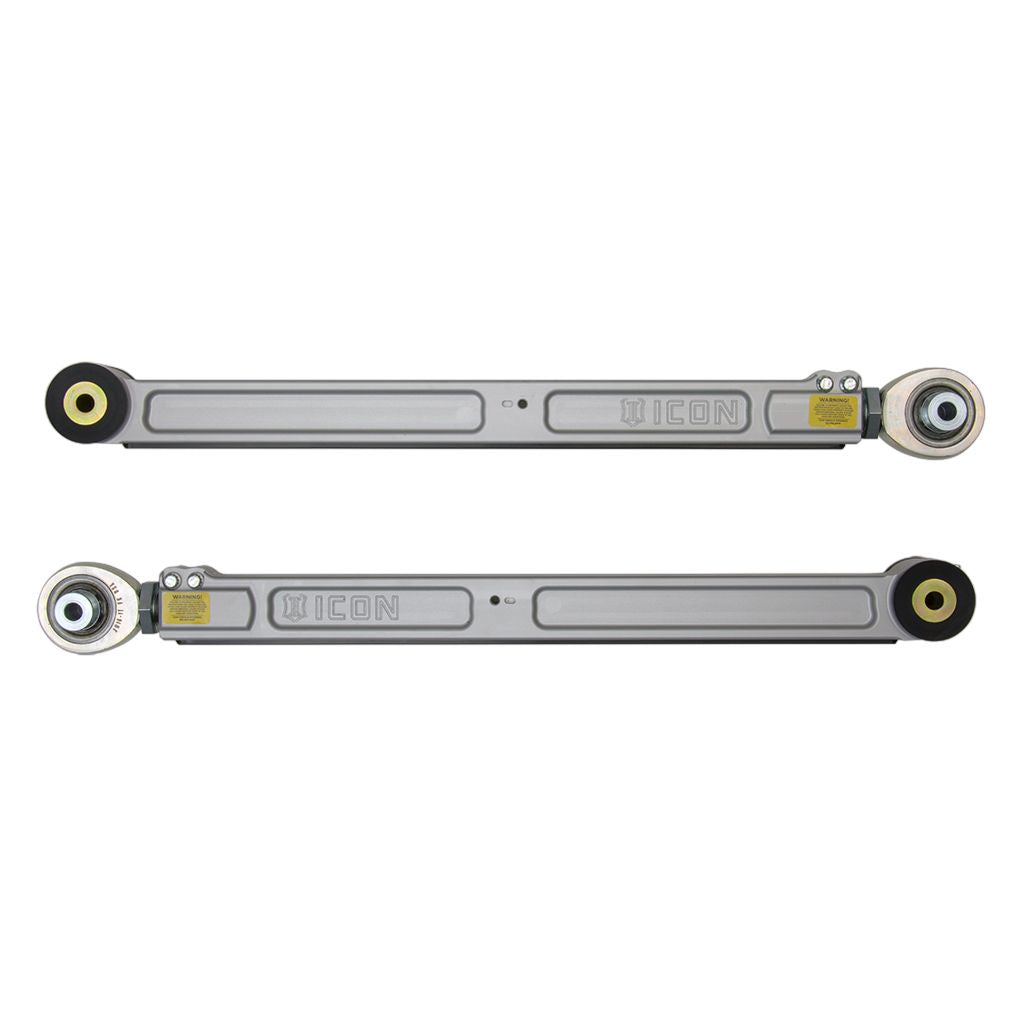

07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX BILLET LOWER TRAILING ARM KIT

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.

• On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
• Vehicle specific, high clearance design for reduced link contact with obstacles
• Replaceable Nylon ROCK Slider to protect the link from damage
• CNC machined 6061 aluminum construction
• Large FK Bearing JMX16T PTFE-lined rod ends
• Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
• Covered by ICON’s Limited Lifetime Warranty

Attributes:

• GTIN: 00840103402826
• Brand Name: ICON Vehicle Dynamics
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• 40: yes
• Bushing Color: Black
• 73: Rod End Bearing
• 2371: yes
• Color: Gray
• 4888: Silver
• Control Arm Construction: Billet
• 2389: Aluminum
• End 1 Type: Rod End Bearing
• End 2 Type: Bushing
• Finish: Anodized
• 3390: Performance
• 2339: yes
• Material: Aluminium
• 30: yes
• 2330: No
• Service Parts: 614509 - 54000 BUSHING AND SLEEVE KIT
• 2354: Performance

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: x x inches
• Weight: 0 lb
