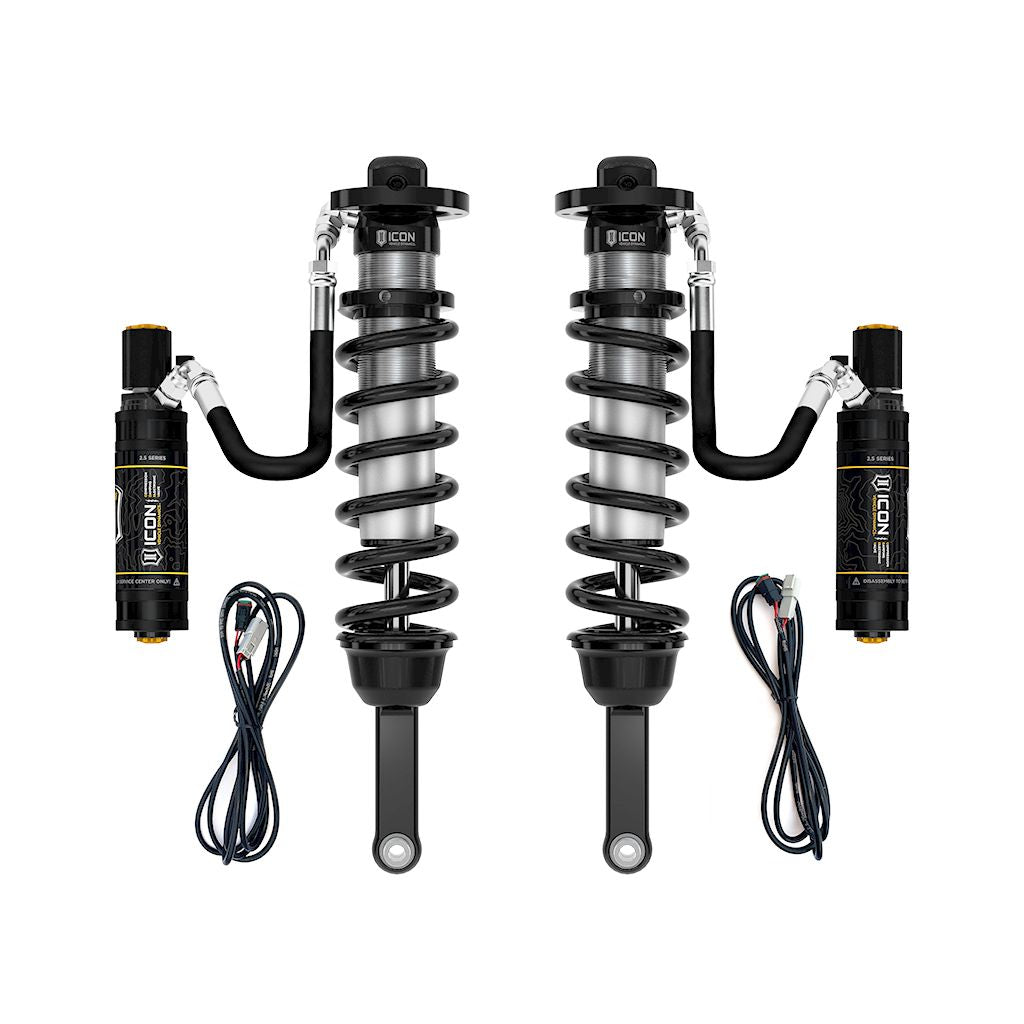

10-UP 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 0-3.5" of lift height over stock
• ICON engineered Eibach Springs
• External reservoirs to attain cooler operating temperatures during extended off-road use
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• 100% Rebuildable
• 100% Revalveable

Attributes:

• GTIN: 00840103411712
• Brand Name: ICON Vehicle Dynamics
• Add-On Part: 57810EP - 10-UP 4RUNNER 1-3" REAR 2.5 VS RR CDEV PAIR
• Adjustable Damping: Electronically
• 2917: yes
• 52: 2.5
• 50: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• 51: yes
• Grade Type: Performance
• 48: Eyelet
• Material: Aluminum
• Maximum Lift: 3.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Remote Reservoir: Yes
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter: 0.875
• 409: Top of Upper Mount Plate
• 408: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650
• 49: Mounting Plate

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: x x inches
• Weight: 0 lb
