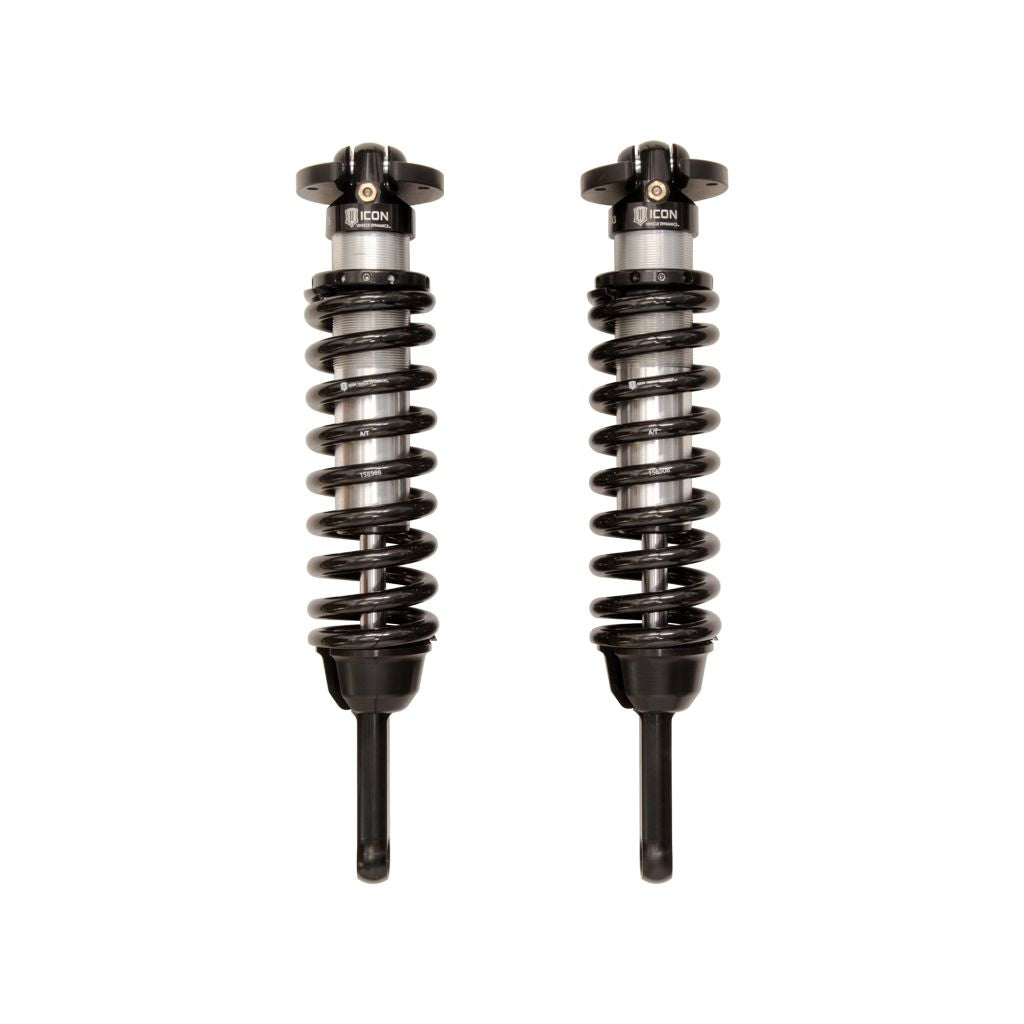

10-UP FJ/4RNR/10-UP GX 2.5 VS IR COILOVER KIT

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

• Adjustable coilovers yield 0-3.5" of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Attributes:

• GTIN: 00840103404004
• Brand Name: ICON Vehicle Dynamics
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Remote Reservoir: NO
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter: 0.875
• 409: Top of Upper Mount Plate
• 408: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650
• 49: Mounting Plate
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: NO
• 2917: yes
• 52: 2.5
• 50: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• 51: yes
• Grade Type: Performance
• 48: Eyelet
• Material: Aluminum
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: x x inches
• Weight: 0 lb
