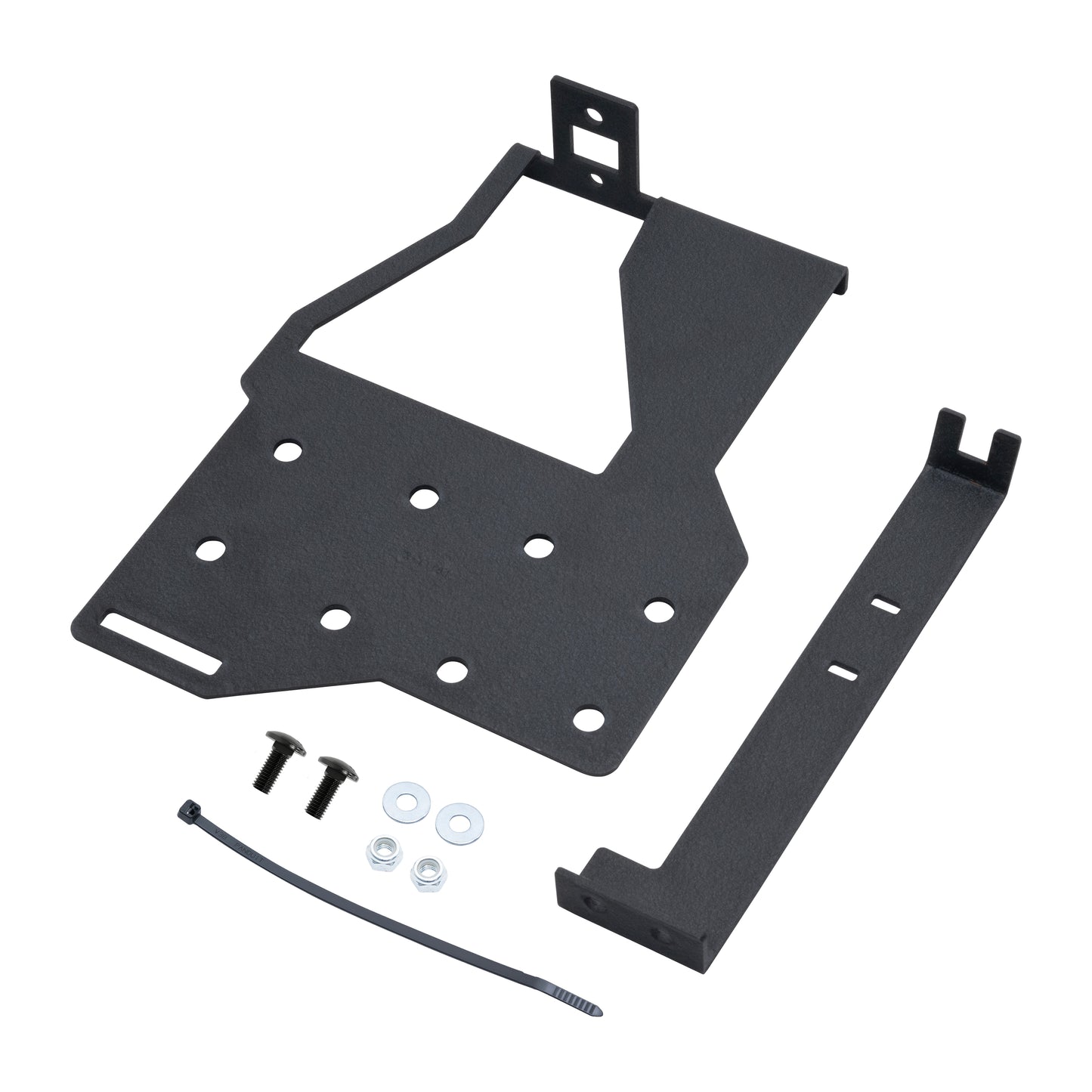

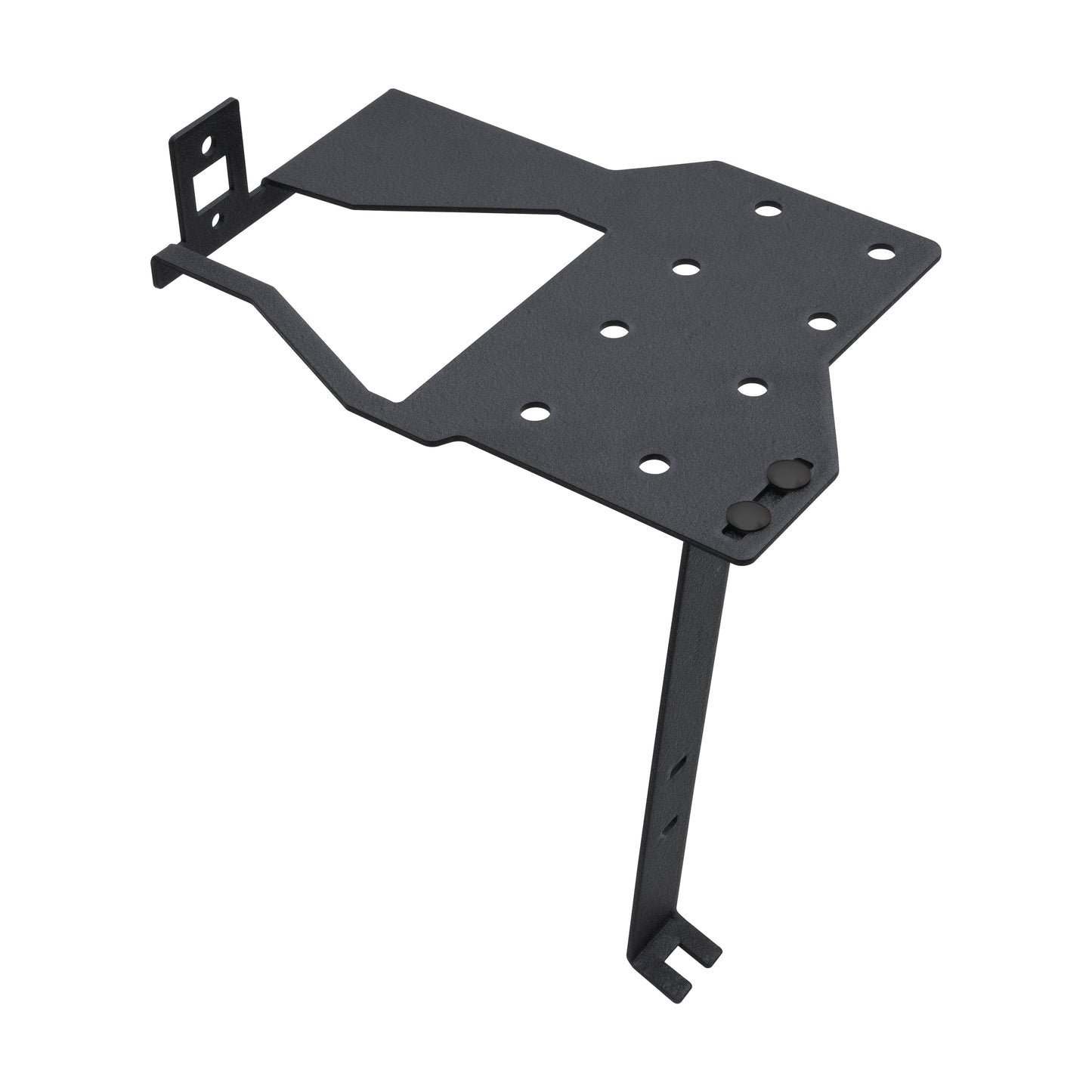

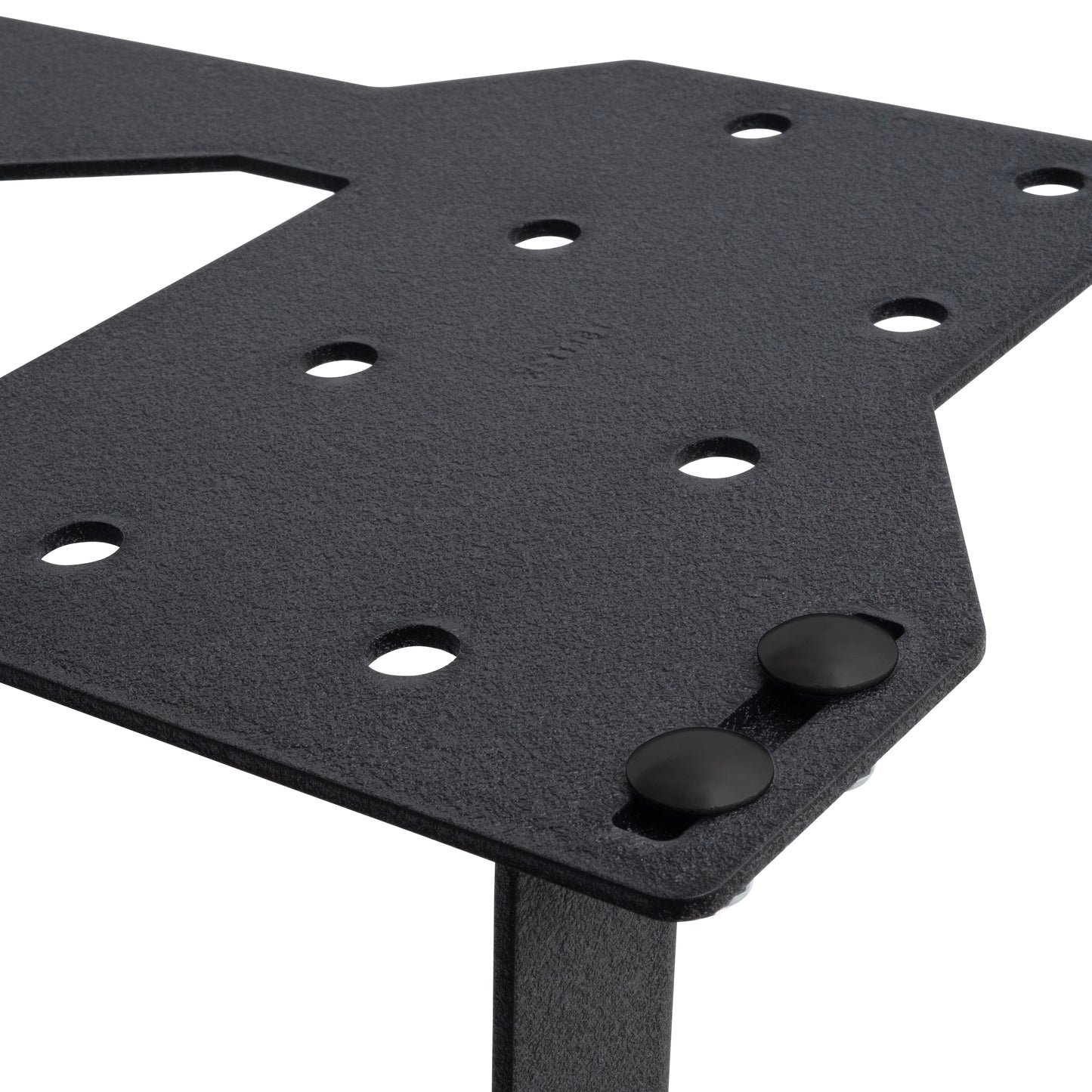

Injen Evolution ARB Compressor Bracket

Important Note: Although this bracket was designed specifically for use with the Injen intake systems, this bracket may also be used with multiple other intake systems, including the factory unit. The AC1001 bracket must be used when you install an ARB air compressor along with our Injen EVO9300 or EVO9301 intake systems.

• Can be used with the OE intake system
• Easily mounts ARB single or twin compressors
• No cutting or welding required
• Mounts using existing mounting locations with factory bolts
• Made of Heavy duty 10-gauge steel
• Powder Coated in our signature wrinkle black finish
• Designed and manufactured in the USA
• NOTE: Must be used when installing an ARB compressor in conjunction with the Injen EVO9300 or EVO9301 intake system

Attributes:

• GTIN: 00843115029845
• Brand Name: Injen
• Compatible Air Compressor: ARB Single or ARB Twin Compressors
• Compatible Intake Systems: EVO9300 / EVO9301
• Compatible Throttle Controller: PT0013B
• Finish: Wrinkle Black
• Grade Type: Accessory Bracket
• Hardware Included: Yes
• Material: 10-Gauge Steel
• Mounting Location: Passenger Side Engine Bay

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10 x 10 x 12 inches
• Weight: 6 lb
