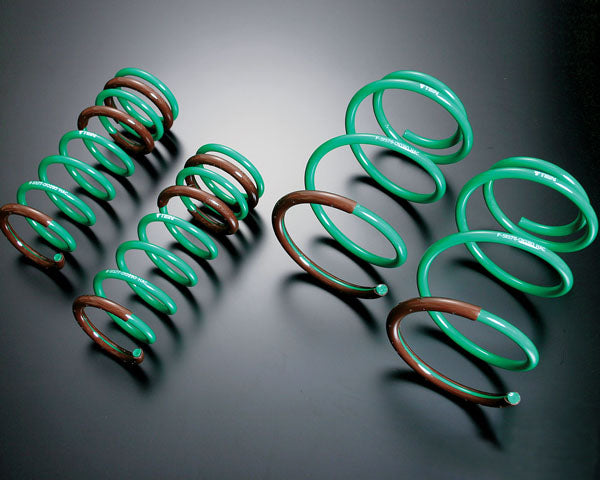

TEIN S.TECH Spring Kit Infiniti Q60 RED SPORT (2DR/6CYL),EXC 4WD CV37 FR 2017+ USA

TEIN S.Tech Springs are an excellent step towards suspension tuning. They offer approximately a 1.5 inch drop for a more aggressive appearance and increased road holding capability. Designed to be used with OEM or OEM replacement shocks. Each application is road tested in North America for the proper balance between performance and comfort. Comes with a 1 year limited warranty, spring length is guaranteed not to sag more than 5mm, and be clear of any manufacturer defects.

Front Specifications:

• Damping Force Adjustment:
• Full-Length Ride-Height Adjustable:
• Upper Mount:
• Recommended Ride Height (mm): -15
• Recommended Ride Height (inch): -0.6
• Ride Height Adjustable Range:
  • Max Low (mm): 0
  • Max Low (inch): 0
  • Max High (mm): 0
  • Max High (inch): 0
  • Recommended Low (mm): 0
  • Recommended Low (inch): 0
  • Recommended High (mm): 0
  • Recommended High (inch): 0
• Spring
  • Rate (kgf/mm): 9.8
  • Rate (lbs/in): 549
  • SP PART#P1K80-0U0
  • Free Length (mm): 311

• Damping Force Adjustment:
• Full-Length Ride-Height Adjustable:
• Upper Mount:
• Recommended Ride Height (mm): -30
• Recommended Ride Height (inch): -1.2
• Ride Height Adjustable Range:
  • Max Low (mm): 0
  • Max Low (inch): 0
  • Max High (mm): 0
  • Max High (inch): 0
  • Recommended Low (mm): 0
  • Recommended Low (inch): 0
  • Recommended High (mm): 0
  • Recommended High (inch): 0
• Spring:
• Rate (kgf/mm): 4.1
• Rate (lbs/in): 230
• SP PART#P1K81-0U0
• Free Length (mm): 348

• Year: 2017+
• Make: Infintiti
• Model: Q60
• Trim: RED SPORT (2DR/6CYL),EXC 4WD
• Drivetrain: FR
• Chassis: CV37
• Motor Size: 3000
• Vehicle Region: USA

• Ft/Rr: Remove The Spring Silencer Rubber Rubber From Oe Spring, And Install It In The Same Position As Oe Spring On This Product.

• Chrome Vanadium SAE9254V Construction
• Progressive Spring Rate Design
• Includes Silencer Rubber on certain applications
• Green Powder Coat Finish
• Developed to be used in conjunction with OEM dampers
• 1-year Manufacturers Defect and Sag Warranty
• Covers over 5mm sag, breakage, deformity, and noise.
• Does not cover powder coat finish and rusting.
